working table systems with an adjustable height

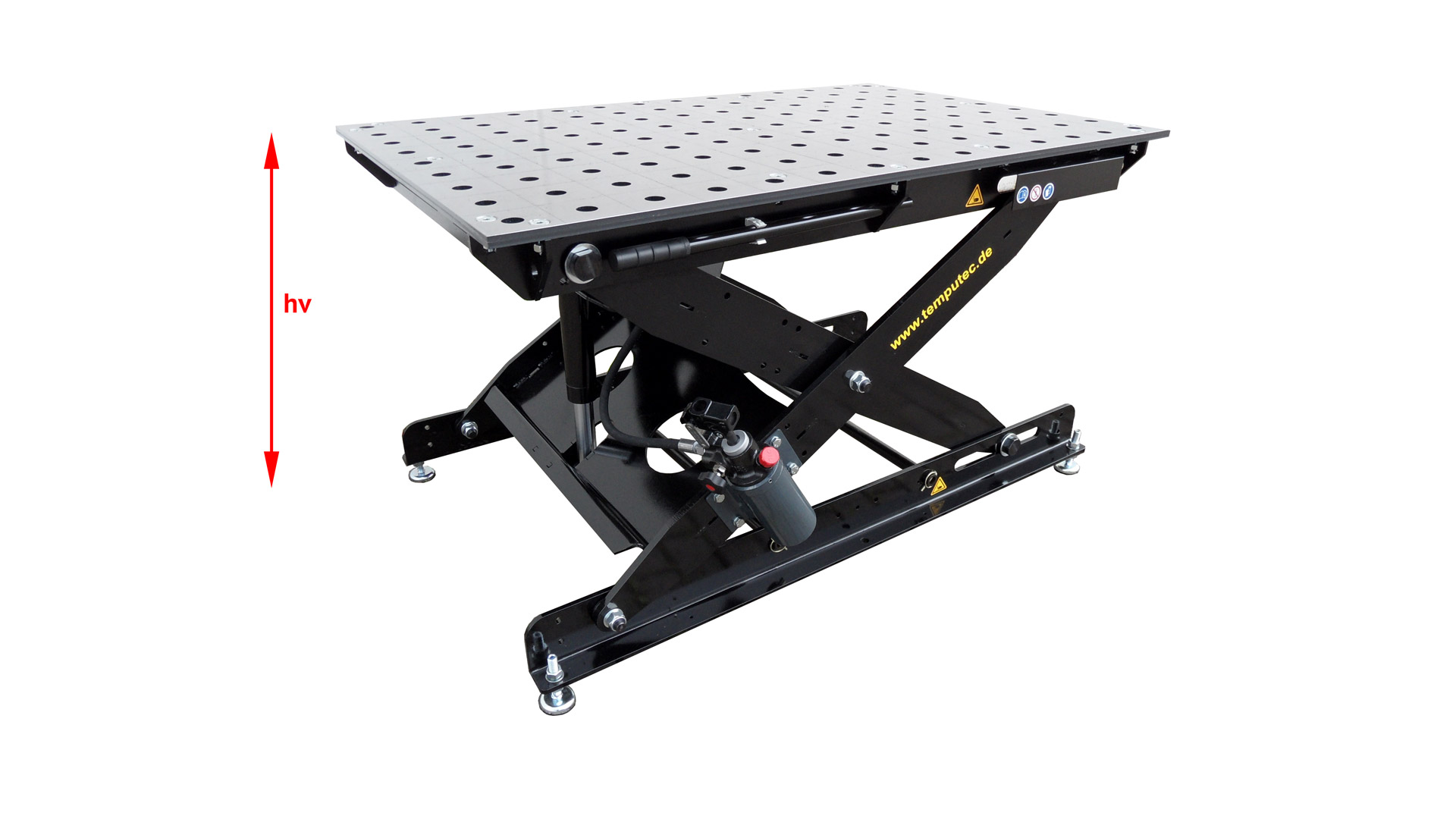

SST 65-105/16S, flexible Höhe der Tabletop "hv" — Temputec SST 65-105/16S Height adjustment using a single-acting hydraulic hand pump 200 bar (at max. 20 kg leverage)
Tabletop height 650 – 1,050 mm, Tabletop dimensions 1.400 x 900 mm,
in black color (standard)

Hydraulische Höhenverstellung mittels einfach wirkender 200 bar Handpumpe (bei max. 20kg Hebelkraft).

Product variants & request

In order to receive a non-binding offer, please make your selection in the table below and send us your request on the following page.

You will then receive an individual price offer from us.

Name	Mat. ST52 Item No.	Working Area in mm	Tabletop thickness in mm (h)*	Tabletop height from – to in mm (hv)	Max. load in kg	Net weight in kg	Mat. ST70 Item No.	Mat. 1.4301 Item No.
SST65-105/16S	100437	1400 x 900	16	650 – 1050	2000	305	100440	100443
SST65-105/16SL	100471	1950 x 950	16	650 – 1050	2000	358	100472	100473
SST65-105/16XS	100498	1480 x 1480	16	650 – 1050	2000	464	100499	104100
SST65-105/16XLS	100483	1980 x 1480	16	650 – 1050	2000	491	100484	100485
SST65-105/16M	100438	2480 x 1230	16	650 – 1050	2000	555	100441	100444
SST65-105/16L	100439	2980 x 1480	16	650 – 1050	2000	725	100442	100445
With Hole Grid Ø16
SST 65-105/16 S	100467	1450 x 950	16	650 – 1050	2000	240	100468	100469
SST 65-105/16 SL	100470	1950 x 950	16	650 – 1050	2000	288	100474	100475

*) Different plate thickness available on request (for example, for customers with existing 25 mm clamping devices) (

View Accessories

Description

Special working tables of the TEMPUTEC FLEX series also have a 100 x 100 mm Ø 28 hole grid same as the FIX series. In addition the FLEX series tables are featured with a manual or 200V or 400V electro-hydraulic height adjustment system.

This allows the users to adjust the entire system table to a special working height to improve the operation conditions without sacrificing ergonomics and cost-efficiency. The range of the height adjustment reaches from 650 – 1,050 mm or even 250 – 900 mm.
The height adjustment of the tables combined with its capability to move them around by just using a standard hand forklift truck enabeling a flexible use of such systems also at other machinery in order to perform secondary operations or maintenance work locally.
Special working tables are ideal solutions for the maintenance of heavy toolings such as used for injection molding, die casting, forging or similar.

Due to the comprehensive bolted joint design the clamping plate can be replaced at low cost if wear occurs later. The table system is therefore especially long-living.

The table below provides an overview of the available standard models.

Features of TEMPUTEC SST flex series:

Features of TEMPUTEC SST flex series: The SST FLEX table models are available in 5 sizes as standard. The surface material and the dual tabletop thickness can be selected based on the application. For special materials such as aluminum, wood or plastic variants, please contact us by phone, email or fax.

extremely rugged solid steel design,
comprehensive bolted joint design
height-adjustable from 650 – 1050 mm or optional even 250 mm – 900 mm
secure and stable by up to 890 kg net weight and levelling feet
table plate thickness dual 16mm or triple 25 mm with Ø 28 mm hole grid
100×100 mm line grid for alignment of workpieces and appliances
wide variety of tabletop materials (aluminium, stainless steel, polymer, etc.)
no power supply necessary with manual hydraulic but 220/400V electro-hydraulic drive also available on demand
components coated in black RAL 9005 (powder or KTL,with exception of tabletop unit)individual colorations feasible at extra costs
