TEMPUTEC FLEX series – SWT – TEMPUTEC International

working table systems with an adjustable height and side panels

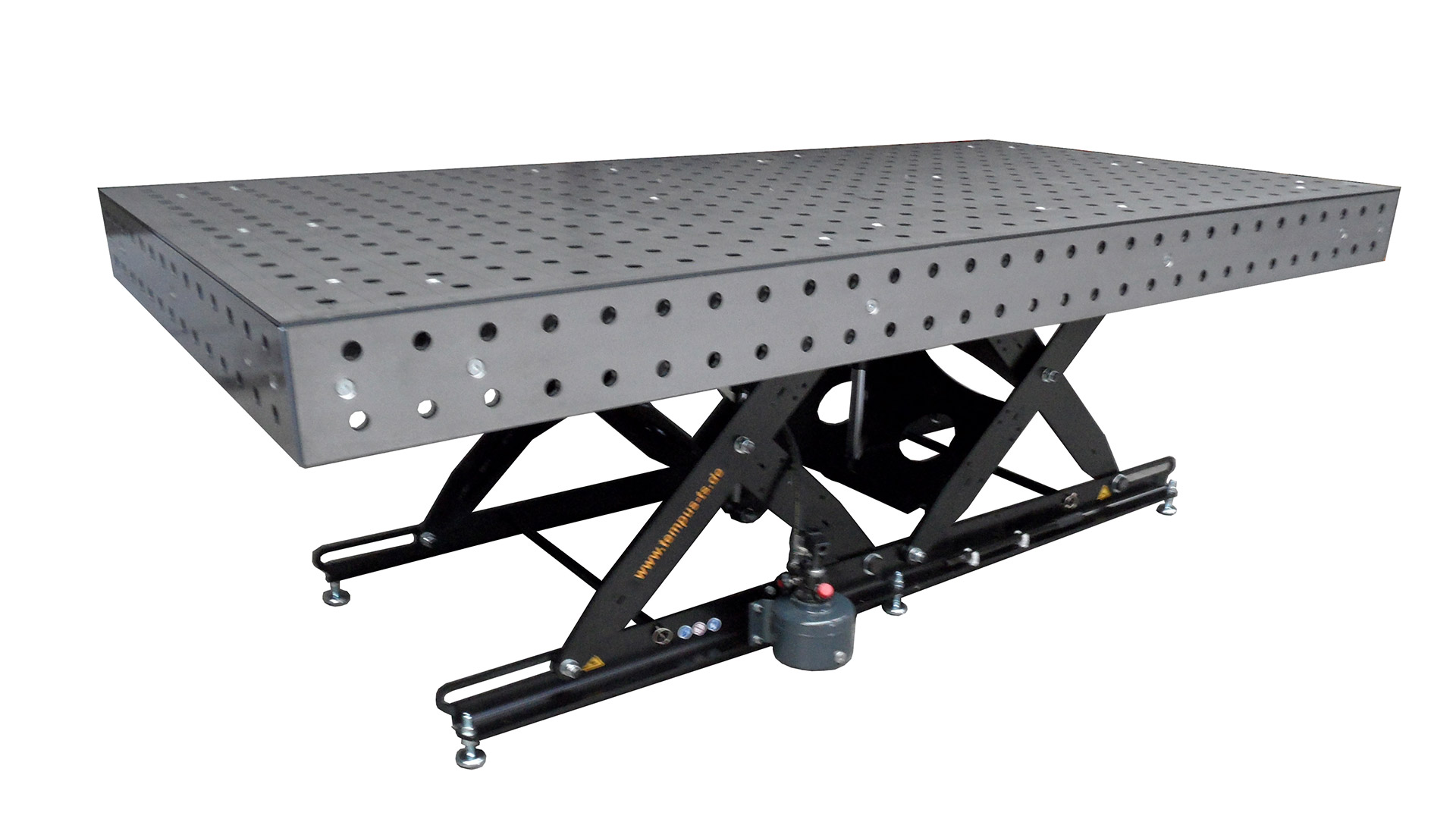

working table SWT Serie FLEX 65-105 16 L 200 — working table SWT Serie FLEX 65-105/16 L-200 Height adjustment using a single-acting hydraulic hand pump 200 bar (at max. 20 kg leverage)
height adjustable from 650 1050 mm, Tabletop dimensions 2.480 x 1.230 mm

Die Höhe der Seitenwange beträgt 200 mm.

Product variants & request

In order to receive a non-binding offer, please make your selection in the table below and send us your request on the following page.

You will then receive an individual price offer from us.

Name	Mat. ST52 Item No.	Working Area in mm	Tabletop thickness in mm (h)*	Tabletop height from – to in mm (hv)	Max. load in kg	Net weight in kg	Mat. ST70 Item No.	Mat. 1.4301 Item No.
SWT 65-105/16 S-200	100455	1400 x 900	16-200	650 – 1050	2000	315	100458	100461
SWT 65-105/16 SL-200	100479	1950 x 950	16-200	650 – 1050	2000	355	100480	100481
SWT 65-105/16 XS-200	104101	1480 x 1450	16-200	650 – 1050	2000	602	104102	104103
SWT 65-105/16 XSL-200	100494	1950 x 1450	16-200	650 – 1050	2000	655	100495	100496
SWT 65-105/16 M-200	100456	2480 x 1230	16-200	650 – 1050	2000	650	100459	100462
SWT 65-105/16 L-200	100457	2980 x 1480	16-200	650 – 1050	2000	850	100460	100463
Version with side panels 200 mm and hole grid Ø16
SWT 65-105/16 S-200 Ø16	100464	1450 x 950	16-200	650 – 1050	2000	375	100465	100466
SWT 65-105/16 SL-200 Ø16	100476	1950 x 950	16-200	650 – 1050	2000	490	100477	100478

*) Different plate thickness available on request (for example, for customers with existing 25 mm clamping devices) (

View Accessories

Description

Special working tables of the TEMPUTEC FLEX series also have a 100 x 100 mm Ø 28 hole grid same as the FIX series. In addition the FLEX series tables are featured with a manual or 200V or 400V electro-hydraulic height adjustment system.

This allows the users to adjust the entire system table to a special working height to improve the operation conditions without sacrificing ergonomics and cost-efficiency. The range of the height adjustment reaches from 650 – 1,050 mm or even 250 – 900 mm.
The height adjustment of the tables combined with its capability to move them around by just using a standard hand forklift truck enabeling a flexible use of such systems also at other machinery in order to perform secondary operations or maintenance work locally.
Special working tables are ideal solutions for the maintenance of heavy toolings such as used for injection molding, die casting, forging or similar.

Due to the comprehensive bolted joint design the clamping plate can be replaced at low cost if wear occurs later. The table system is therefore especially long-living.

The table above provides an overview of the available standard models.

Features of TEMPUTEC SWT FLEX series:

The SWTFLEX table models are available in 4 sizes. The surface material thickness can be selected according to application. For special materials such as aluminum, wood or plastic, please contact us by phone, mail or fax.

extremely rugged solid steel design,
comprehensive bolted joint design
height-adjustable from 650 – 1050 mm or optional even 250 mm – 900 mm
secure and stable by up to 890 kg net weight and levelling feet
table plate thickness dual 16mm or triple 25 mm with Ø 28 mm hole grid
100×100 mm line grid for alignment of workpieces and appliances
wide variety of tabletop materials (aluminium, stainless steel, polymer, etc.)
no power supply necessary with manual hydraulic but 220/400V electro-hydraulic drive also available on demand
components coated in black RAL 9005 (powder or KTL,with exception of tabletop unit)individual colorations feasible at extra costs
