working table systems with an adjustable height

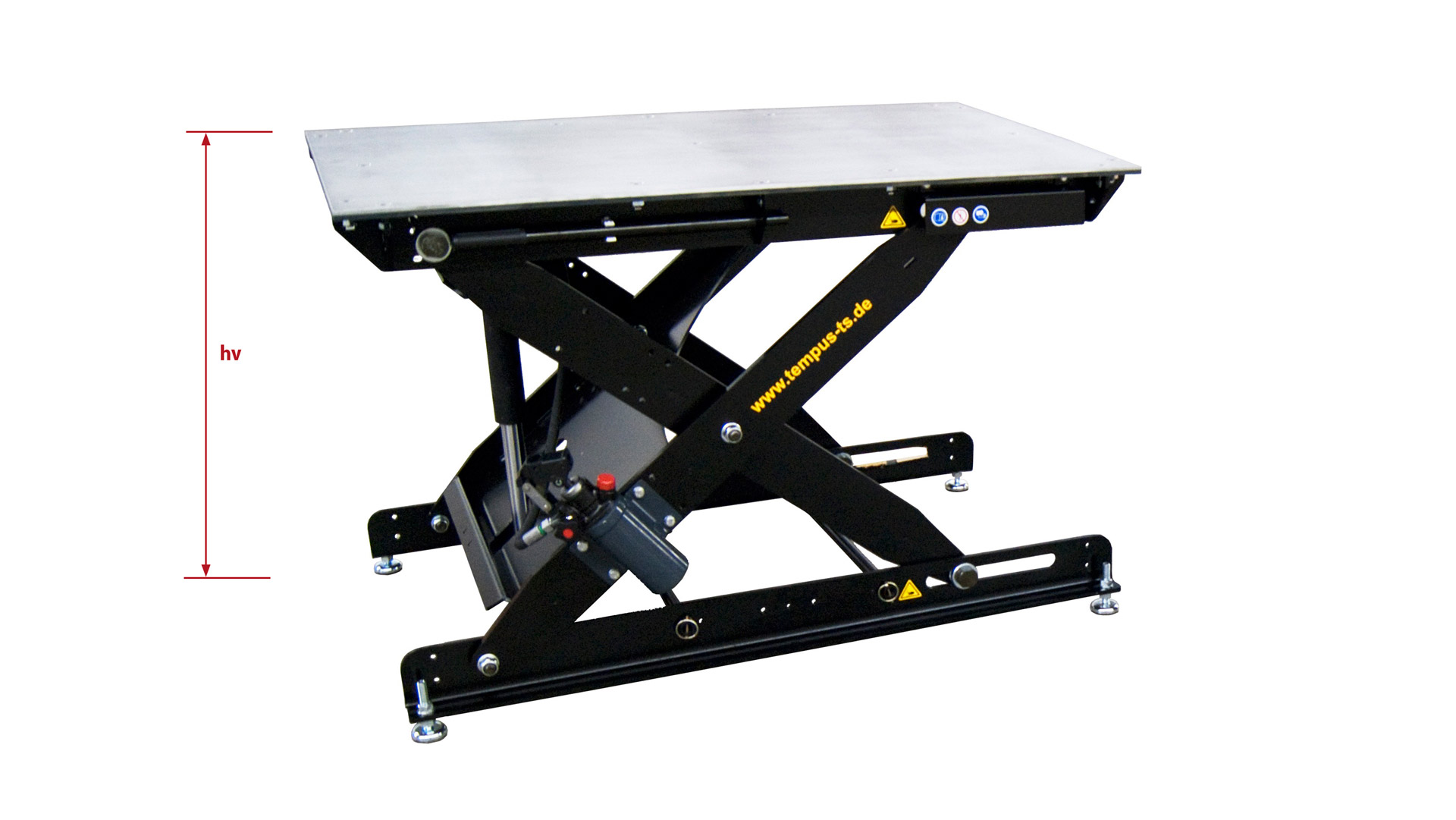

PIC100246-1-SMT-65-105-16-S — Temputec SMT flex 65-105/12 S
Tabletop dimensions 1480 x 980 mm

Hydraulische Höhenverstellung mittels einfach wirkender 200 bar Handpumpe (bei max. 20kg Hebelkraft).

Je nach gefordertem Einsatzzweckkann die Arbeitsplattenstärke „h“von 12 bis 20 mm unterschiedlichausgeführt werden (siehe Tabelle).

Product variants & request

In order to receive a non-binding offer, please make your selection in the table below and send us your request on the following page. You will then receive an individual price offer from us.

Name	Mat. ST52 Item No.	Working Area in mm	Tabletop thickness in mm (h)	Tabletop height from – to in mm (hv)	Max. load in kg	Net weight in kg	Mat. ST70 Item No.	Mat. 1.4301 Item No.
SMT 65-105/12 S	100236	1480 x 980	12	650 – 1050	2000	335	100245	100264
SMT 65-105/16 S	100237	1480 x 980	16	650 – 1050	2000	371	100246	100265
SMT 65-105/20 S	100238	1480 x 980	20	650 – 1050	2000	431	100211	100266
SMT 65-105/12 SL	100255	1980 x 980	12	650 – 1050	2000	385	100256	100257
SMT 65-105/16 SL	100258	1980 x 980	16	650 – 1050	2000	445	100259	100260
SMT 65-105/20 SL	100261	1980 x 980	20	650 – 1050	2000	510	100262	100263
SMT 65-105/20 XSL	100280	1980 x 1480	20	650 – 1050	2000	480	100281	100282
SMT 65-105/20 XSL	100283	1980 x 1480	20	650 – 1050	2000	575	100284	100285
SMT 65-105/20 XSL	100286	1980 x 1480	20	650 – 1050	2000	670	100287	100288
SMT 65-105/12 M	100239	2480 x 1230	12	650 – 1050	2000	600	100248	100267
SMT 65-105/16 M	100240	2480 x 1230	16	650 – 1050	2000	675	100249	100268
SMT 65-105/20 M	100241	2480 x 1230	20	650 – 1050	2000	800	100250	100269
SMT 65-105/12 L	100242	2980 x 1480	12	650 – 1050	2000	732	100251	100270
SMT 65-105/16 L	100243	2980 x 1480	16	650 – 1050	2000	840	100252	100271
SMT 65-105/20 L	100244	2980 x 1480	20	650 – 1050	2000	1020	100253	100272

View Accessories

Description

Welding and assembly tables of the SMT FLEX series are solid, height-adjustable workplaces: suitable for everyday use, for handling heavy workpieces, for working with electric power tools or chemical and oily substances.
The tables can be easily moved with the transport bars in the foot rail using a lift truck and can be easily height-adjusted to other work areas. Height-adjustment covers a range of 650 mm to 1,050 mm.

The solid steel tabletop of up to 20 mm thickness can cope with heavy shocks or blows which often occur when working with heavy hand tools or handling very heavy metal workpieces or tools without meaningful distortion or indentations.

The metal tabletop allows for unrestricted use of magnetic fixtures for holding components. This universal table provides very good protection against tipping over even when loaded with heavy objects or tools even in its highest working position thanks to its very high net weight.

The table above provides an overview of the available standard models.

Features of TEMPUTEC SMT FIX series:

The SMT FLEX table models are available in 4 sizes. The material and the dual plate thickness can be selected according to the application. For special materials such as aluminum, wood or plastic, please contact us by phone, mail or fax.

extremely rugged solid steel design, comprehensive bolted joint design

surface coated in black RAL 9005 (powder or KTL, with exception of tabletop)
