working table systems with a fixed height

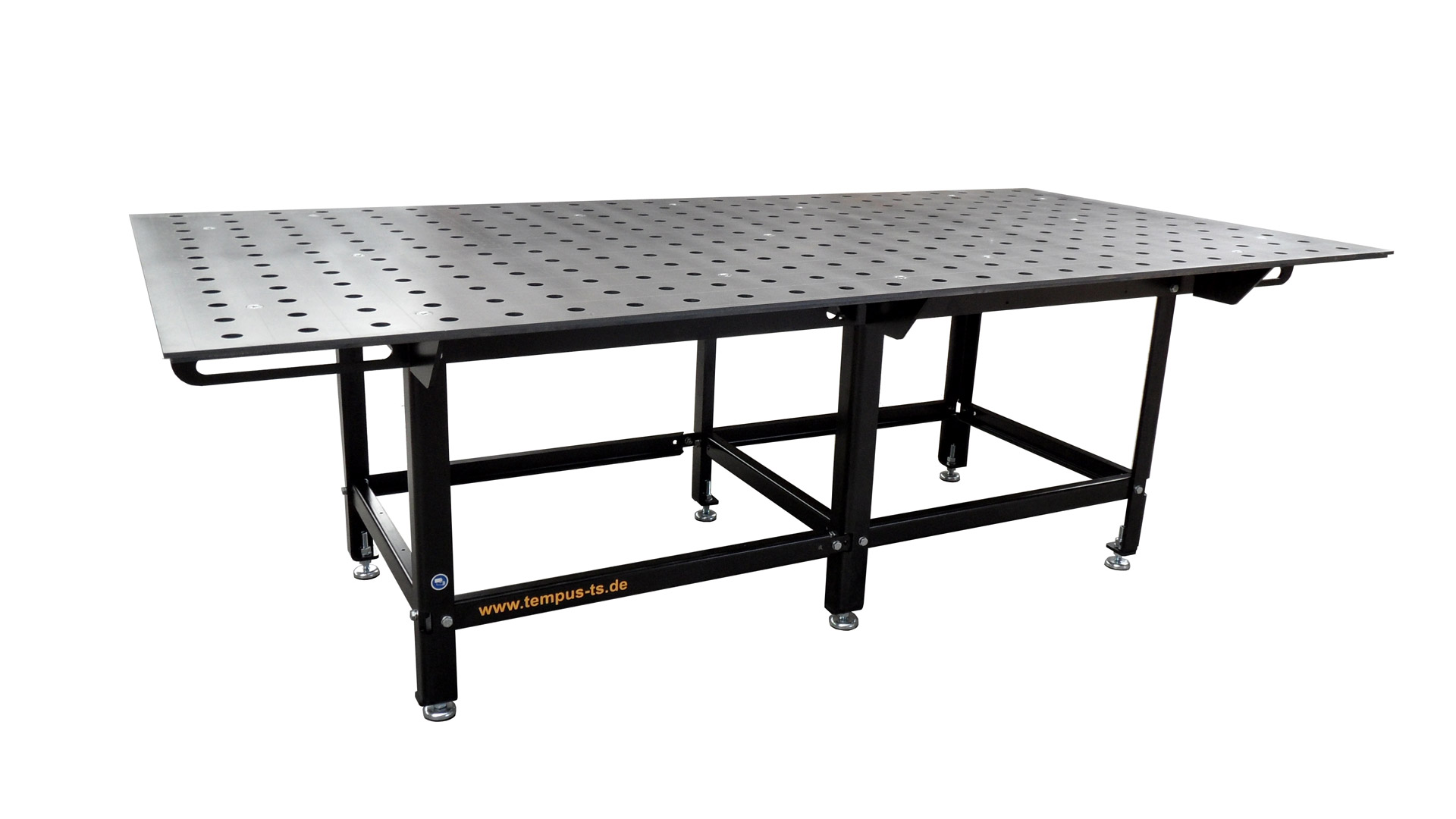

PIC100320-1-SST-80-16-M — Temputec SST 80/16 M, M-Format Tisch mit praktischem 100 x 100 mm Lochraster (Ø28 mm)
für rationelles Spannen und Fixieren.

SST fix 80/16 S – Höhe der Working Area "h" - siehe Tabelle — SST fix 80/16 S – Höhe der Working Area “h” – siehe Tabelle

Temputec SST FIX 80/16L VA, Tabletop dimensions 2.980 x 1.480 mm

SST FIX 80/16 SL — Temputec SST 80/16 SL, Tabletop dimensions 1.950 x 950 mm

Product variants & request

In order to receive a non-binding offer, please make your selection in the table below and send us your request on the following page.

You will then receive an individual price offer from us.

Name	Mat. ST52 Art-Nr.	Working Area in mm	Tabletop thickness in mm (h)*	Tisch- höhe in mm	Max. load in kg	Net weight in kg	Mat. ST70 Art-Nr.	Mat. 1.4301 Art-Nr.
SST 80/16 S	100319	1400 x 900	16	800	2000	235	100322	100325
SST 80/16 SL	100345	1950 x 950	16	800	2000	250	100346	100347
SST 80/16 XS	100370	1480 x 1480	16	800	2000	332	100371	100372
SST 80/16 XLS	100363	1980 x 1480	16	800	2000	285	100364	100365
SST 80/16 M	100320	2480 x 1230	16	800	2000	472	100323	100326
SST 80/16 L	100321	2980 x 1480	16	800	2000	630	100324	100327
Modelle mit Systemloch Ø16
SST 80/16 S Ø16	100340	1450 x 950	16	800	2000	240	100341	100342
SST 80/16 SL Ø16	100343	1950 x 950	16	800	2000	288	100348	100349

*) Different plate thickness available on request (for example, for customers with existing 25 mm clamping devices) (

View Accessories

Description

The special working tables of the SST/SWT FIX series are ideal workplaces for efficient clamping, welding and processing adhesive bonding structures such as railings, racks, appliances, etc.
With the help of our extensive assortment of clamping devices (see section “Clamping Table Accessories“) these table systems are usable as flexible fixtures for high-quality manufacturing of small and medium volume products.
With its 16 mm thick metallic plate and Ø28 hole grid the working benches are usable as 3D-welding table system (tabletops also are available with a 25 mm (triple plate 24+1mm) plate version for extreme heavy working tasks).
Additionally the table pate has 100 x 100mm line grid markings to assist alignment of workpieces or appliances.
The Ø28 system hole grid allows the use a variety of clamping elements and fixation aids. For special process requirements, it is possible to alter the working plate materials to for example, stainless steel 1.4301, aluminum, polymer or even high strength ST70 materials.
Due to the comprehensive bolted joint design the working plate can be renewed at low cost if wear occurs later. The table system is therefore especially long-living.

The table above provides an overview of the available standard models.

Features of TEMPUTEC SST fix series:

The SST FIX table models are available in 4 sizes. The surface material and the dual tablet thickness can be selected according to the application. For special materials such as aluminum, wood or plastic, please contact us by phone, mail or fax.

extremely rugged solid steel design, comprehensive bolted joint design
secure and stable by up to 650 kg net weight and levelling feet
tabletop of 16 mm thickness dual or 25 mm (triple) with Ø28 mm hole grid
100×100 mm line grid for alignment of workpieces or appliances
variety of tabletop materials (aluminium, stainless steel, polymer, etc.)
surface coated in black RAL 9005 (powder or KTL, with exception of tabletop unit)
surface can be coloured individually on demand
